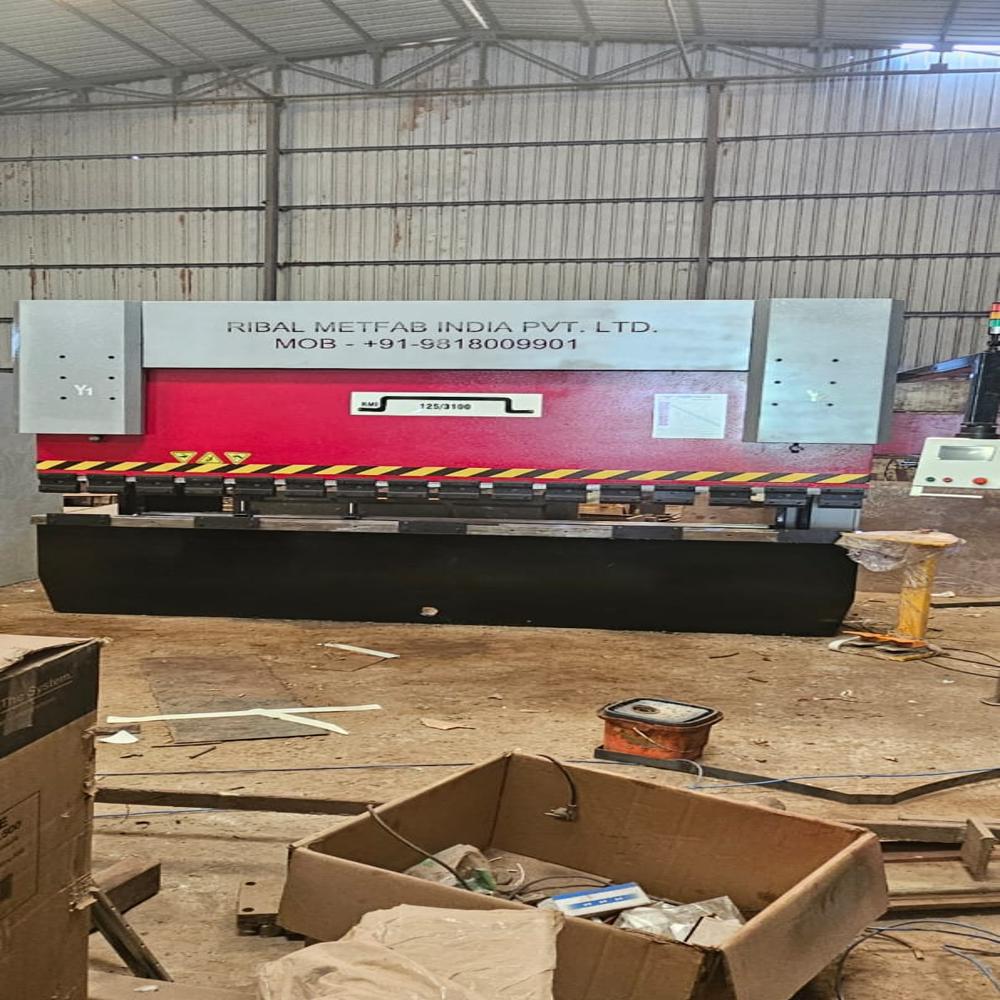

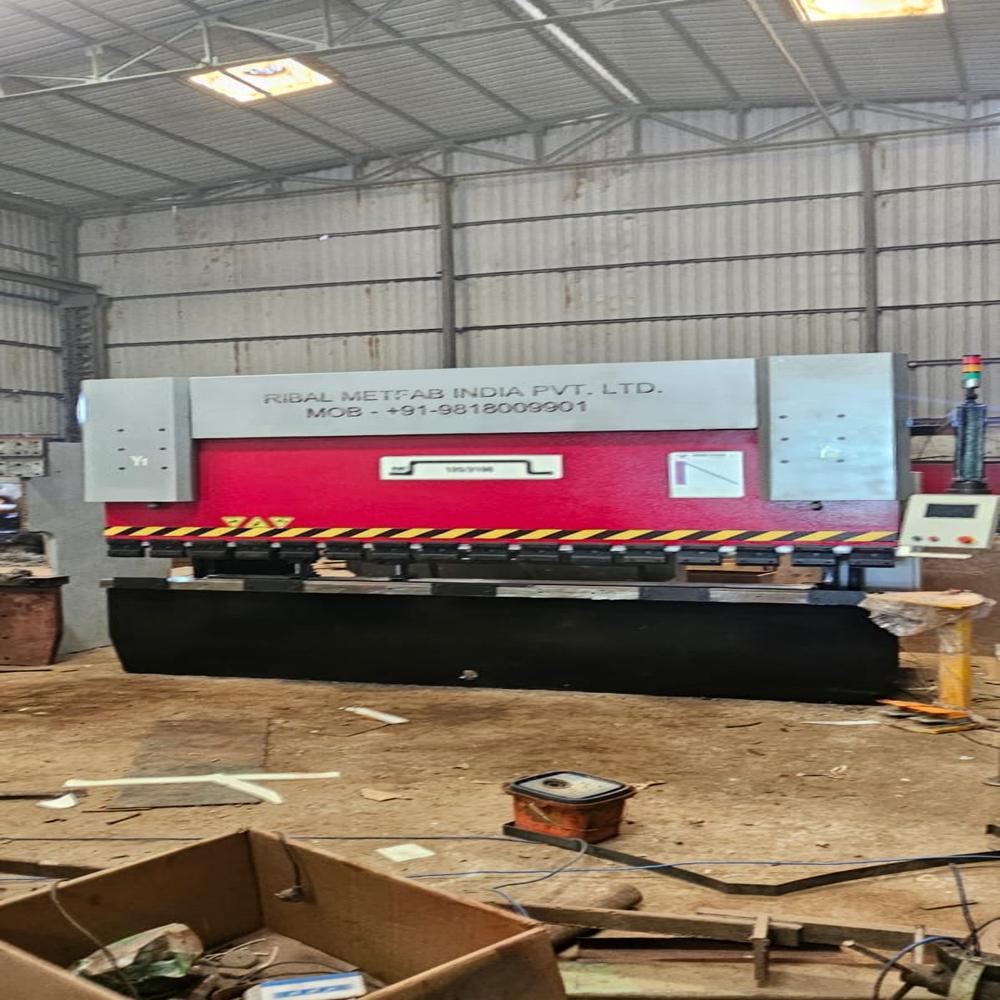

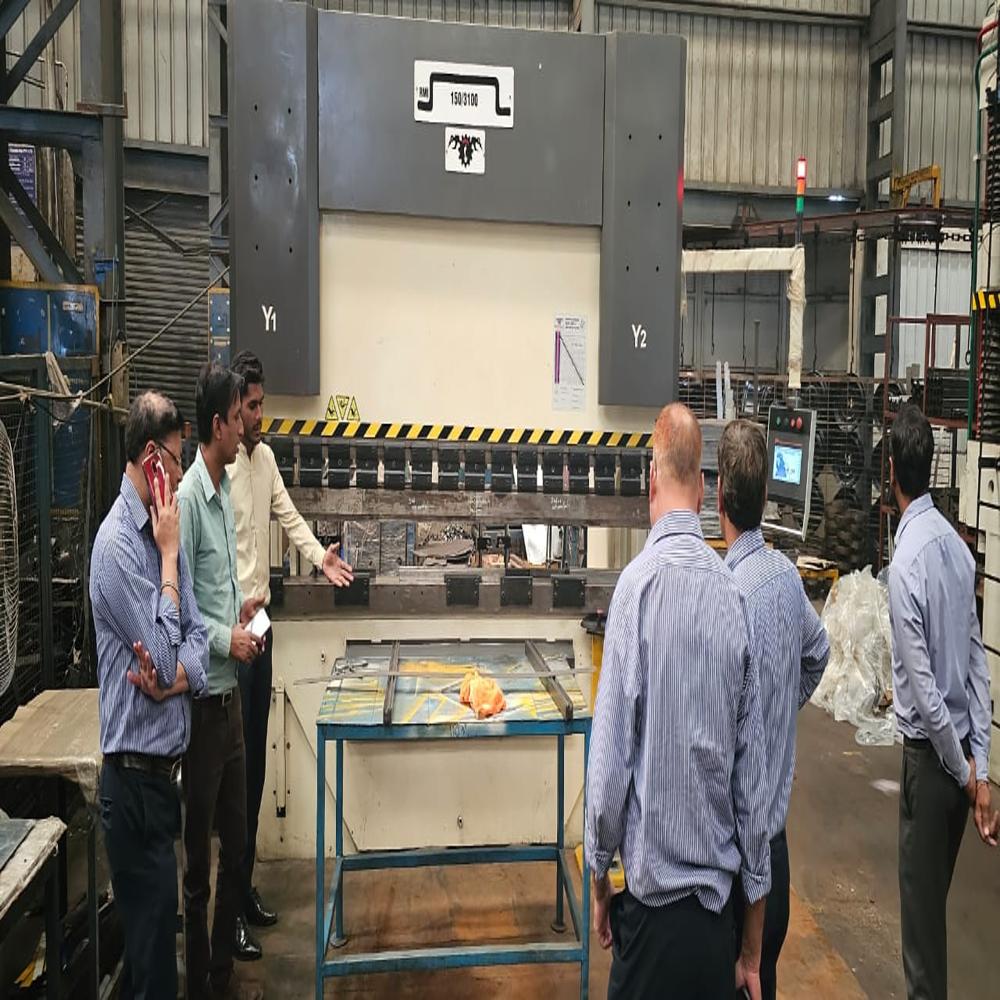

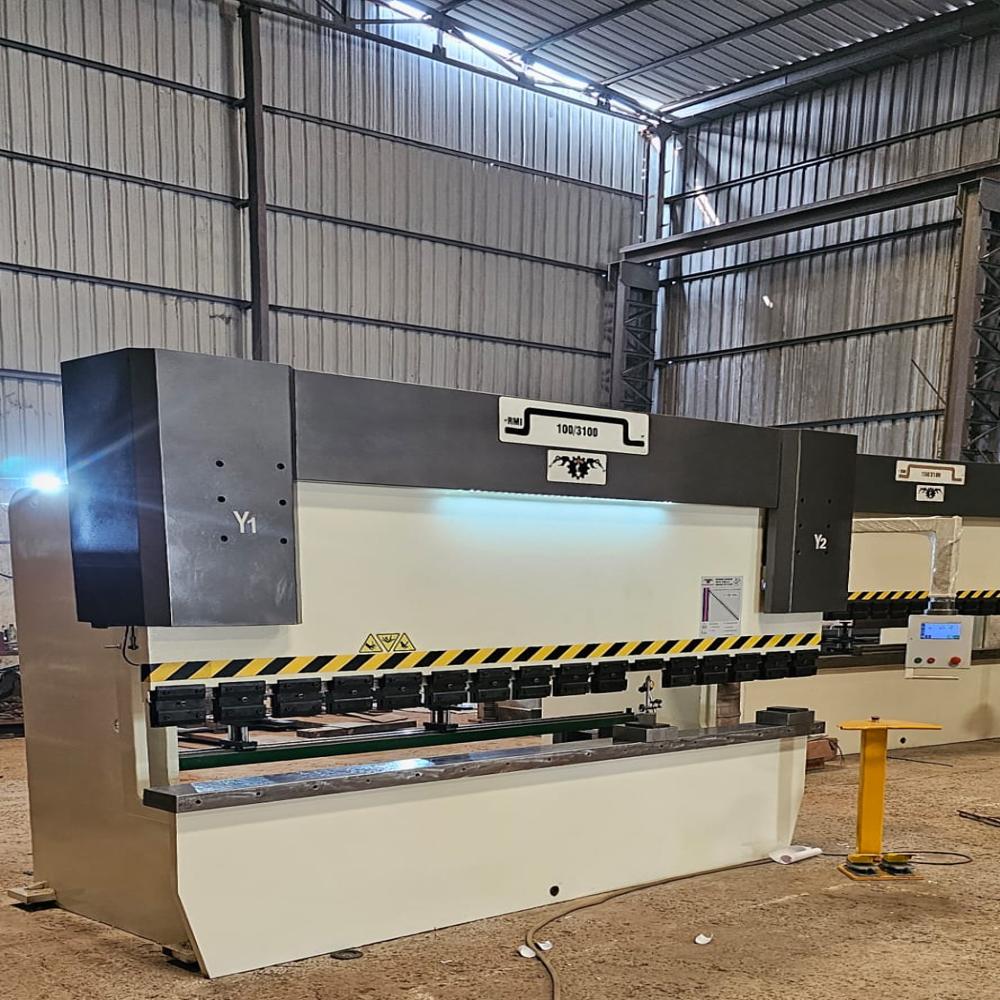

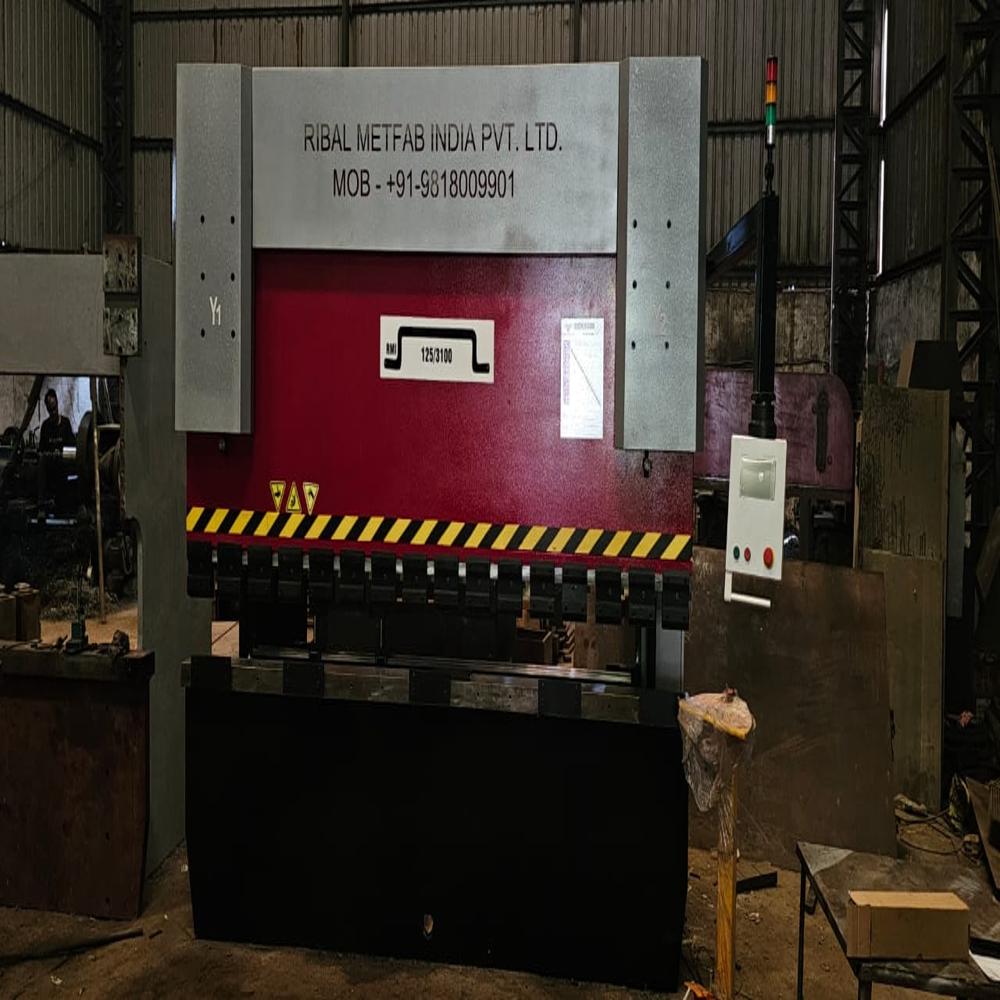

CNC Press Brake Machine

Name: CNC Press Brake Machine
Brand: RIBAL METFAB INDIA (P) LTD.
Price: 1500000.0 INR
Availability: InStock

Price 1500000.0 INR/ Unit

Get a Price/Quote

MOQ : 5 Units

CNC Press Brake Machine Specification

Frequency
50 Hz

Motor Power
7.5 HP

Features
CNC Control, Precision Bending, Programmable Back Gauge, Hydraulic System

Application
Sheet Metal Bending

Cutting Size
2500 mm

Voltage
415 V

Strokes Per Min
10-12

Stroke Length
120 mm

Sheet Size
2500 x 6 mm

Automation Grade
Automatic

Bending Strength
80 Ton

Usage
Industrial

Material
Mild Steel

Product Type
Press Brake Machine

Accuracy
0.01 mm

Color
As Per Availability

Cooling System
Optional Oil Chiller

Frame Structure
Heavy-duty Welded Steel

Hydraulic Oil Capacity
140 Liters

Safety Features
Light Guards, Emergency Stop Switch

Open Height
380 mm

Front Support Arms
2 Nos., Adjustable

Control System
CNC Controller with Touch Display

Back Gauge Range
600 mm

Throat Depth
320 mm

Repeatability
0.03 mm

Ram Speed
Rapid: 80 mm/s, Working: 10 mm/s, Return: 80 mm/s

Work Table Width
180 mm

CNC Press Brake Machine Trade Information

Minimum Order Quantity
5 Units

Supply Ability
50 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About CNC Press Brake Machine

A CNC Press Brake Machine is a type of industrial equipment used for bending and forming sheet metal. The CNC system allows for the programming and control of the bending process through computer software. This enhances precision, repeatability, and the ability to handle complex bending tasks. The offered machine features a user-friendly touchscreen interface for programming and controlling the machine. They come in various sizes and capacities to handle different thicknesses and lengths of sheet metal. CNC Press Brake Machine ensures high precision and accuracy in bending, allowing for tight tolerances and the production of high-quality finished products.

Standard - First Class

Operation - Semi Automatic

Material - Stainless Steel

Advanced CNC Control for Precision Bending

This press brake features a state-of-the-art CNC controller with a user-friendly touch display, enabling precise and automated operations. The programmable back gauge and hydraulic system deliver accurate and repeatable bends, optimized for demanding sheet metal tasks. Its automatic, high-speed manipulations are complemented by adjustable parameters, providing manufacturers robust operational flexibility.

Rugged Construction and Safety Standards

Built with a heavy-duty welded steel frame, this CNC press brake stands ready for high-strength bending applications. Safety is a priority, with integrated light guards, an emergency stop switch, and optional oil chiller to maintain hydraulic system performance. Its structural integrity and safety features ensure reliable and secure operation during industrial use.

Efficiency and Versatility in Industrial Applications

Designed for the diverse needs of sheet metal fabricators, the machine accommodates up to 2500 mm cuts in mild steel sheets. Its rapid and working ram speeds, adjustable support arms, and high strokes per minute empower rapid processing. Manufacturers benefit from a reliable, versatile solution for consistent, high-volume production.

FAQ's of CNC Press Brake Machine:

Q: How does the CNC controller with touch display improve precision and usability?

A: The CNC controller with a touch display simplifies programming and operation, allowing users to set parameters with high accuracy and repeatability. This interface reduces operator error, speeds up adjustments, and ensures precise bends for complex sheet metal tasks.

Q: What materials and sheet sizes can this press brake machine handle?

A: This model is designed for bending mild steel sheets up to 2500 mm in length and 6 mm in thickness. Its 80-ton bending strength makes it suitable for a wide range of industrial sheet metal applications.

Q: When should the optional oil chiller be used?

A: The optional oil chiller is recommended during extended or high-volume production runs to maintain the hydraulic oil's optimal temperature, preventing overheating and ensuring consistent machine performance.

Q: Where is the CNC press brake commonly utilized?

A: This machine is predominantly used in industrial environments, including manufacturing, metal fabrication, and sheet processing plants, across India by importers, manufacturers, suppliers, and traders.

Q: What safety features are included to protect operators during use?

A: The CNC press brake comes equipped with light guards and an emergency stop switch, which promote a safe working environment by immediately halting operations if any safety concern arises.

Q: How does the programmable back gauge enhance bending operations?

A: The programmable back gauge allows operators to set precise material positions for consistent bending accuracy. This feature reduces manual handling, speeds up set-up times, and increases productivity for repetitive tasks.

Q: What are the key benefits of using this CNC press brake for sheet metal processing?

A: Users gain from increased efficiency, high accuracy (up to 0.01 mm), fast operation, and automated control, making it ideal for high-volume, precise sheet metal bending. The machine's robust build and advanced features also contribute to reduced downtime and maintenance.
